Duke Tools 180mm / 7 Inch Aluminium Rafter Square
Duke Tools 180mm Aluminium Carpenter’s Square: Anodised for corrosion resistance, laser-etched markings for precise 90° framing ideal for Australian roofing layouts.
Duke Tools 180mm / 7 Inch Aluminium Carpenter's Square
Precision Aluminium Speed Square by Duke Tools
Product Description

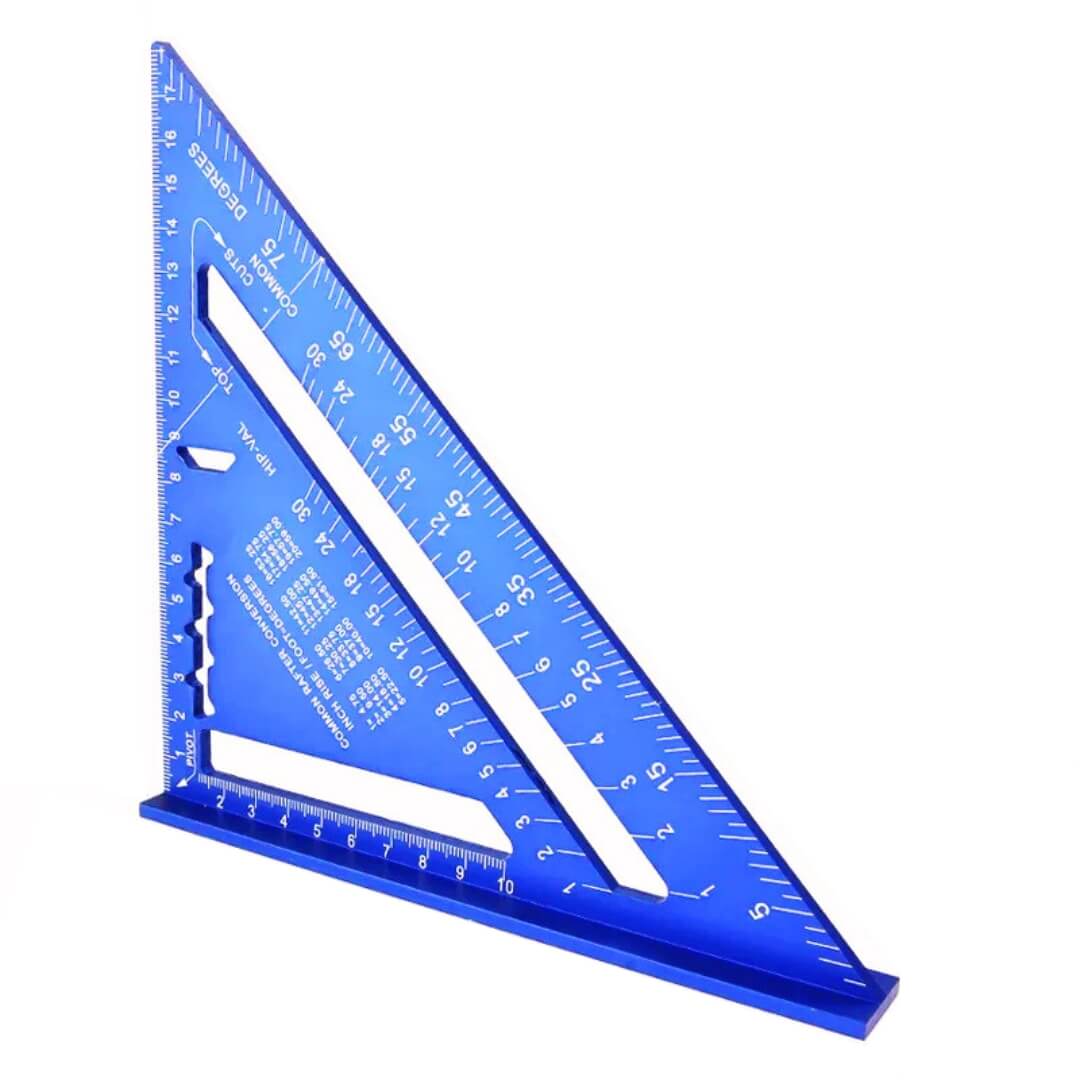

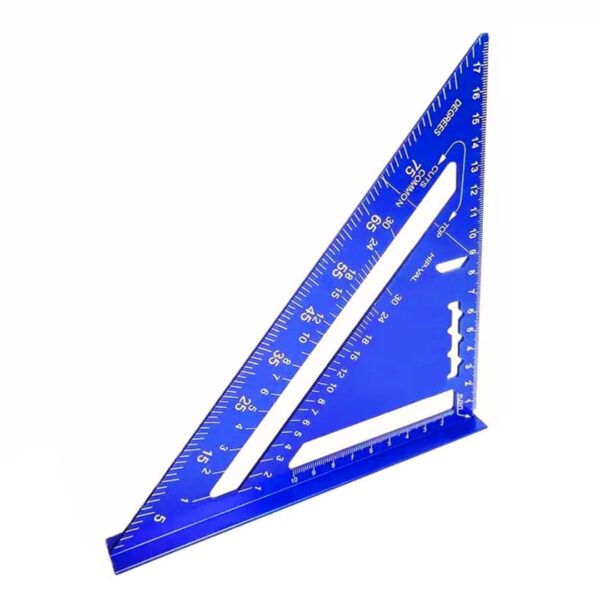

The Duke Tools 180mm / 7 Inch Aluminium Carpenter’s Square serves as a versatile layout tool for Australian residential construction, facilitating accurate angle marking and squaring in timber framing. Constructed from anodised 6063-T6 aluminium alloy (tensile strength 241 MPa, yield strength 214 MPa) with a Type II anodising layer (10-25 µm thick per MIL-A-8625) for superior corrosion resistance in coastal or high-humidity environments, this square maintains dimensional stability across -20°C to 80°C thermal cycles without warping.
Its laser-etched graduations on both faces—offering 0°-90° scales with 1° increments and auxiliary 15°-75° rafter references—ensure readability under 100 lux site lighting, while the integrated metric conversion table supports rapid pitch calculations for common Australian roof spans up to 6 m. The 90° and 45° reference edges, machined to ±0.3° accuracy via CNC processes, align with implied angular tolerances in AS 1684 for frame plumbness (≤4 mm deviation over 2 m height), enabling users to achieve straightness within 4 mm/2 m bow limits and reducing cumulative errors in multi-element assemblies like wall frames or trusses.
Key Features & Benefits
- Anodised 6063-T6 Aluminium Body: Provides a hard oxide surface which is resistant to salt spray for 336+ hours, ideal for outdoor Australian applications without galvanic degradation.
- Dual-Sided Laser Etching: 0.08 mm deep engravings with 0.05 mm line width ensure permanent legibility after 500+ abrasion cycles.
- Precision Angular Accuracy: CNC-machined edges to ±0.3° for 90°/45° references, facilitating frame alignments within NCC-mandated 4 mm/2 m plumbness tolerances.
- Integrated Rafter Tables: Etched metric conversions for 1:12 to 12:12 pitches.
Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Brand | DUKE Tools Perth® |
| SKU | DP052535-B |
| EAN / Barcode | 0662652604137 |
| Warranty Period | 12 Months |
| Warranty Type | Against defects in materials and workmanship |
| Warranty Terms | Refer full Warranty Terms |
| Product Condition | New |
| Overall Size | 180 mm hypotenuse x 180 mm legs, effective marking length 175 mm for spans up to 2 m |
| Product Length (mm) | 180mm |
| Product Width (mm) | 180mm |
| Product Height (mm) | 2.5 mm extruded profile, resisting deflection <0.5 mm under 50 N lateral load |
| Product Weight | 150 grams |
| Material | Anodised 6063-T6 aluminium alloy (Al 98.5%, Mg 0.45-0.9%, Si 0.2-0.6%) for lightweight strength and thermal conductivity of 200 W/m·K |
| Anodising Type | Type II sulfuric acid process, 10-25 µm thickness per MIL-A-8625 for dielectric strength up to 720 V |
| Corrosion Resistance | Withstands 336 hours salt fog exposure |
| Angular Tolerance | ±0.3° across 0°-90° range |
| Markings Depth | Laser-etched to 0.08 mm with 0.05 mm line width for visibility post-wear |
| Scale Resolution | 1° increments on primary edges, 5 mm metric along hypotenuse for hybrid measurements |
| Rafter References | Etched tables for 15°-75° common/hypotenuse ratios |
| Edge Finish | Chamfered 45° bevel (0.8 mm width) to minimise surface scratches on timbers up to 300 HB hardness |
| Colour | Blue-dyed anodising with UV stability for 1,000+ hours exposure |
| Operating Temperature | -20°C to 80°C, with expansion coefficient 23 x 10^-6/°C ensuring <0.1 mm distortion |
Package Contents
1 × Duke Tools 180mm / 7 Inch Aluminium Carpenter’s Square
Product FAQs & Recommended Uses
Get expert advice, in-depth answers, and practical tips to make the most of your tools and gear!
This guide addresses common queries on usage, maintenance and safety. Always consult a professional for complex repairs.
How do I verify the squareness accuracy?
Align the 90° corner against a known straight edge (e.g., machined timber) and scribe two perpendicular lines; rotate 180° and re-scribe—overlaps must stay within 0.5 mm over 180 mm
Is this square suitable for steel framing?
Optimised for timber but usable on light-gauge steel (up to 1.2 mm thick) for 90° checks; chamfered edges prevent scratching zinc coatings (AS 1397), though for heavy sections (>3 mm), pair with a magnetic square to avoid slippage under vibration.
Is this carpenter's square easy to carry around job sites?
Absolutely, at just 150 g and compact 180 mm size, it slips easily into a tool belt or pocket, making it a go-to for quick checks on Australian building sites without adding bulk to your kit.
Why choose Duke Tools over cheaper plastic squares?
Our anodised aluminium version outlasts plastic in everyday knocks and weather, giving you reliable accuracy for years on projects like decks or frames, backed by a satisfaction guarantee for peace of mind
Recommended Uses
- Timber wall framing: Establishing 90° stud.
- Roof truss layout: Marking 30°-45° pitches rafters.
- Decking installation: Squaring joist grids on coastal verandas with galvanised fixings.
- Stair riser gauging: Transferring 34° angles for compliant treads.
- Fence post setting: Ensuring plumb 90° braces in rural hardwood paling fences.
- Shed floor framing: Checking bearer squareness on concrete slabs in backyard projects.
- Cabinet assembly: Precise 90° corner marking for flat-pack kitchens using particleboard.
- Pergola construction: 45° bevel scribing for slatted roofs in garden shade structures.
- Verandah extensions: Layout for eaves and fascia.
- Boat hull framing: Angle transfers on marine plywood for trailerable dinghies.
- Furniture restoration: Repairing mitred joints in antique cedar dining tables.
- Landscaping paths: Marking 90° paver edges for interlocking concrete blocks.
- Solar frame mounting: Squaring panel arrays on Colorbond roofs.
- Arbor building: Hip rafter angles for climbing vine supports in vineyards.
- Pallet upcycling: Straight cuts for raised garden beds from recycled pine.
- Door jamb installation: Ensuring 90° reveals in internal timber linings.
- Gazebo assembly: 45° roof cuts for hexagonal garden pavilions.
- Retaining wall capping: Level marking on sandstone blocks in sloping yards.
