Duke Tools 6 Piece Screw & Bolt Extractor Set
Easily remove stripped screws, broken bolts, and rusted fasteners with the Duke Tools 6 Piece Extractor Set.
Duke Tools 6 Piece Screw & Bolt Extractor Set

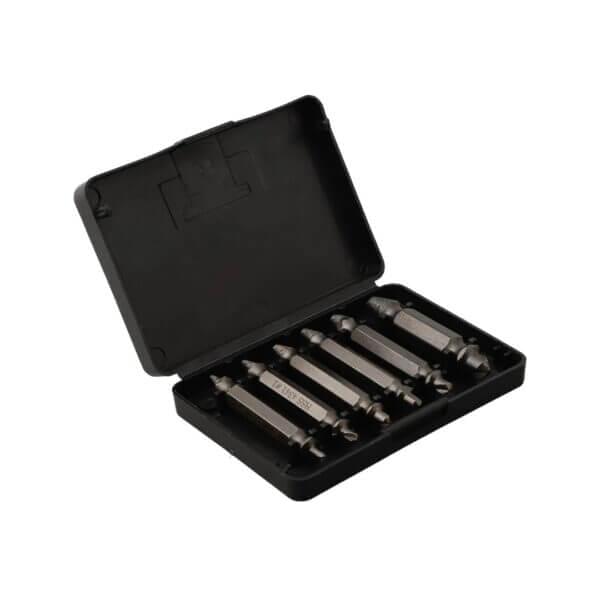

The Duke Tools Screw Extractor Set—double-ended design removes seized screws without surface damage
Product Description
The Duke Tools 6 Piece Screw & Bolt Extractor Set provides a robust solution for extracting damaged or seized fasteners, fabricated from HSS 4341 alloy steel—an economical high-speed variant with 0.95% carbon, 4.25% chromium, and 1.1% molybdenum for balanced red hardness (retaining HRC 62-64 at 550-600°C) and toughness—this set features double-ended bits with aggressive left-hand spiral flutes that grip and back out broken screws upon reverse rotation.
Each 51 mm bit integrates a pilot drill tip for initial hole preparation (Ø2-10 mm) without requiring separate tooling, compatible with 1/4″ hex chucks in variable-speed drill drivers (300-800 RPM forward for drilling, low-torque reverse <20 Nm for extraction) and impact drivers under controlled pulses to avoid bit fracture. Suited for soft-to-medium materials like mild steel (up to 250 HB), aluminium alloys, and hardwoods, the uncoated finish promotes heat dissipation during friction-heavy tasks.
Key Features & Benefits

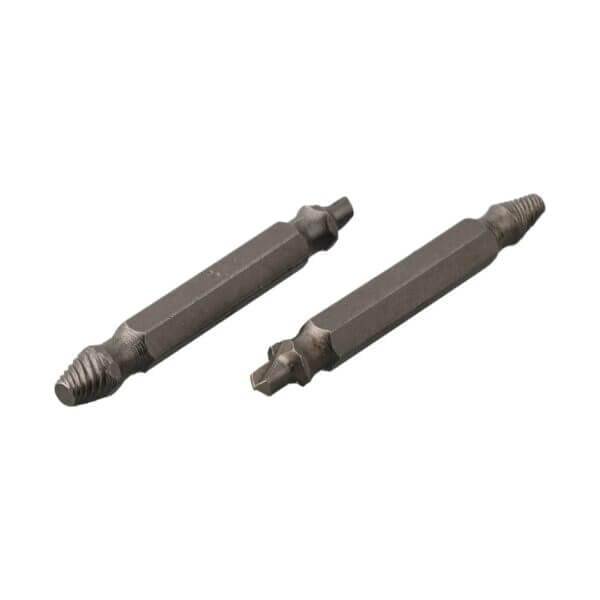

- Double-Ended Spiral Design: Combines tapered drill point with left-hand extractor flutes for one-tool workflow, enabling self-tapping grip that extracts fasteners up to 1.5x diameter depth without cam-out, per ISO 8992 guidelines for thread removal.
- HSS 4341 Alloy Composition: Delivers superior wear resistance (abrasion index <0.3 mm³/Nm) and thermal stability, extending bit life to 200+ cycles in rusted ferrous applications versus standard carbon steels.
- Reverse-Mode Compatibility: Optimised for low-speed reverse in cordless drivers, with flute geometry that applies counter-torque up to 30 Nm, preventing further thread stripping in seized conditions.
- Universal Material Versatility: Handles extraction in metals (e.g., galvanised steel, timbers, and composites, with minimal workpiece distortion (<0.1 mm radial expansion).
Drill Bit Sizes
- Overall Length: 51 mm per bit, balancing reach for blind extractions up to 40 mm depth.
- Extractor Size #0: Suits No. 2–No. 3 screws / No. 8 (4 mm) bolts; pilot Ø2.5 mm.
- Extractor Size #1: Suits No. 4–No. 7 screws / No. 10 (5 mm) bolts; pilot Ø3.2 mm.
- Extractor Size #2: Suits No. 8–No. 10 screws / 1/4″ (6 mm) bolts; pilot Ø4.0 mm.
- Extractor Size #3: Suits No. 11–No. 14 screws / 5/16″ (8 mm) bolts; pilot Ø6.0 mm.
- Extractor Size #4: Suits No. 16–No. 24 screws / 3/8″ (10 mm) bolts; pilot Ø8.0 mm.
Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Brand | DUKE Tools Perth® |
| SKU | DP052542 |
| EAN / Barcode | 0792105195629 |
| Warranty Period | 12 Months |
| Warranty Type | Against defects in materials and workmanship |
| Warranty Terms | Refer full Warranty Terms |
| Product Condition | New |
| Product Length (mm) | 90mm |
| Product Width (mm) | 65mm |
| Product Height (mm) | 20mm |
| Product Weight | 97 grams |
| SPECIFICATION | DETAILS |
|---|---|
| Material | HSS 4341 alloy steel (0.95% C, 4.25% Cr, 1.1% Mo) for enhanced red hardness and toughness |
| Hardness Rating | HRC 62-64 post-heat treatment, ensuring edge retention under 600°C frictional loads. |
| Surface Finish | Uncoated for optimal chip evacuation and heat transfer in dry conditions |
| Torque Capacity | Up to 30 Nm reverse extraction |
| Operating RPM | 300-800 forward for drilling; <300 reverse for extraction to minimise heat buildup |
| Flute Geometry | Left-hand spiral with 30° helix angle for aggressive back-out grip on damaged heads |
| Pilot Drill Tip | Tapered cobalt-enriched point (Ø2-10 mm) for self-centring hole initiation without wanderC |
| Shank Type | 1/4″ (6.35 mm) hex quick-change |
Package Contents

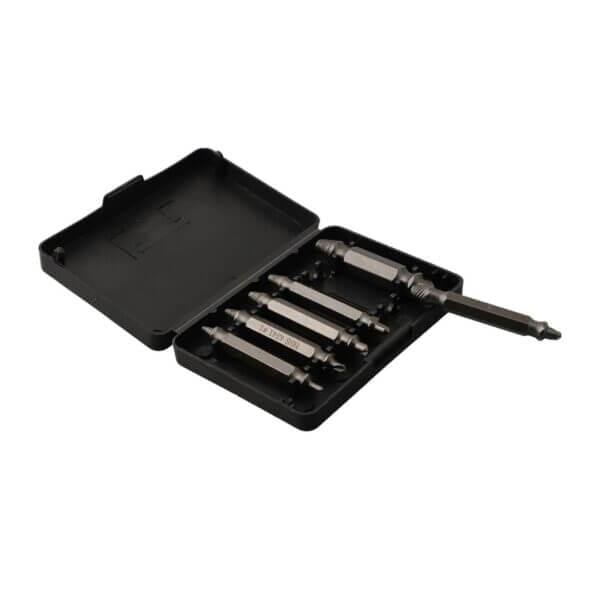

1 × Duke Tools 6 Piece Screw & Bolt Extractor Set (including 6 extractor bits and storage case)
FAQs & Technical Guide
Get expert advice, in-depth answers, and practical tips to make the most of your Duke Tools 6 Piece Screw & Bolt Extractor Set. This guide addresses common queries on usage, maintenance and safety.
How do I prepare a hole for extraction using these bits?
In forward mode at 400-600 RPM, use the drill end to create a pilot hole to 75% of fastener diameter (e.g., Ø4 mm for M5 bolt), applying light cutting oil for ferrous metals; retract every 5 mm to clear chips and preventing binding.
Can these extractors handle rusted stainless steel fasteners?
Suitable for 304/316 grades up to M8 with penetrating oil (e.g., CRC 5-56) applied 30 minutes prior; HSS 4341’s toughness resists galling, but for M10+, use heat (torch to 200°C) to break seizure without exceeding 600°C tool threshold.
What torque settings are safe for reverse extraction on an impact driver?
Set to low pulse (10-20 Nm) with clutch engaged; the left-hand flutes engage at 5-10 Nm, backing out the fastener—exceeding 30 Nm risks bit shear, so monitor for vibration.
Are these bits suitable for wood or plastic extractions, and what precautions?
Yes, for particleboard or PVC fixings, but reduce RPM to 200-300 and use without oil to avoid splintering; the spiral design minimises delamination (<0.5 mm tear-out), but test on scrap to confirm grip without over-torquing.
Recommended Uses
- Plumbing maintenance: Extracting corroded brass fittings in residential hot water systems.
- Electrical installations: Backing out damaged machine screws from switchboard panels.
- Furniture assembly: Retrieving stripped hex bolts from flat-pack IKEA cabinets.
- Deck construction: Removing over-driven galvanised nails in Australian hardwood timbers.
- Machinery servicing: Clearing broken cap screws from CNC lathe beds in fabrication shops.
- Boat maintenance: Extracting rusted stainless bolts from trailer hitches.
- Renovation projects: Salvaging old lag screws from heritage timber framing.
- Gardening equipment: Removing seized mower blade bolts on Briggs & Stratton engines.
- Appliance repairs: Backing out Phillips-head screws from washing machine drums.
- Fencing installations: Extracting star pickets driven into clay soils.
- Solar panel mounting: Clearing M8 bolts from roof racks in off-grid setups.
- Bicycle workshops: Removing overtightened pedals on mountain bikes.
- Shed building: Retrieving coach screws from steel portal frames.
- Tool restoration: Salvaging vintage chisel handles with embedded brads.
- HVAC servicing: Extracting access panel screws on ducted air conditioners.
- Mining equipment: Backing out shear pins from conveyor idlers.
- Playground construction: Removing swing set anchors from concrete footings.
