Duke Tools Digital Tyre Tread Depth Gauge – 0.01mm Precision Tyre Wear Checker
Stay road-safe with the Duke Tools Digital Tyre Tread Depth Gauge. This compact, easy-to-use tool delivers precise tread, brake pad, and brake shoe measurements down to 0.01mm.

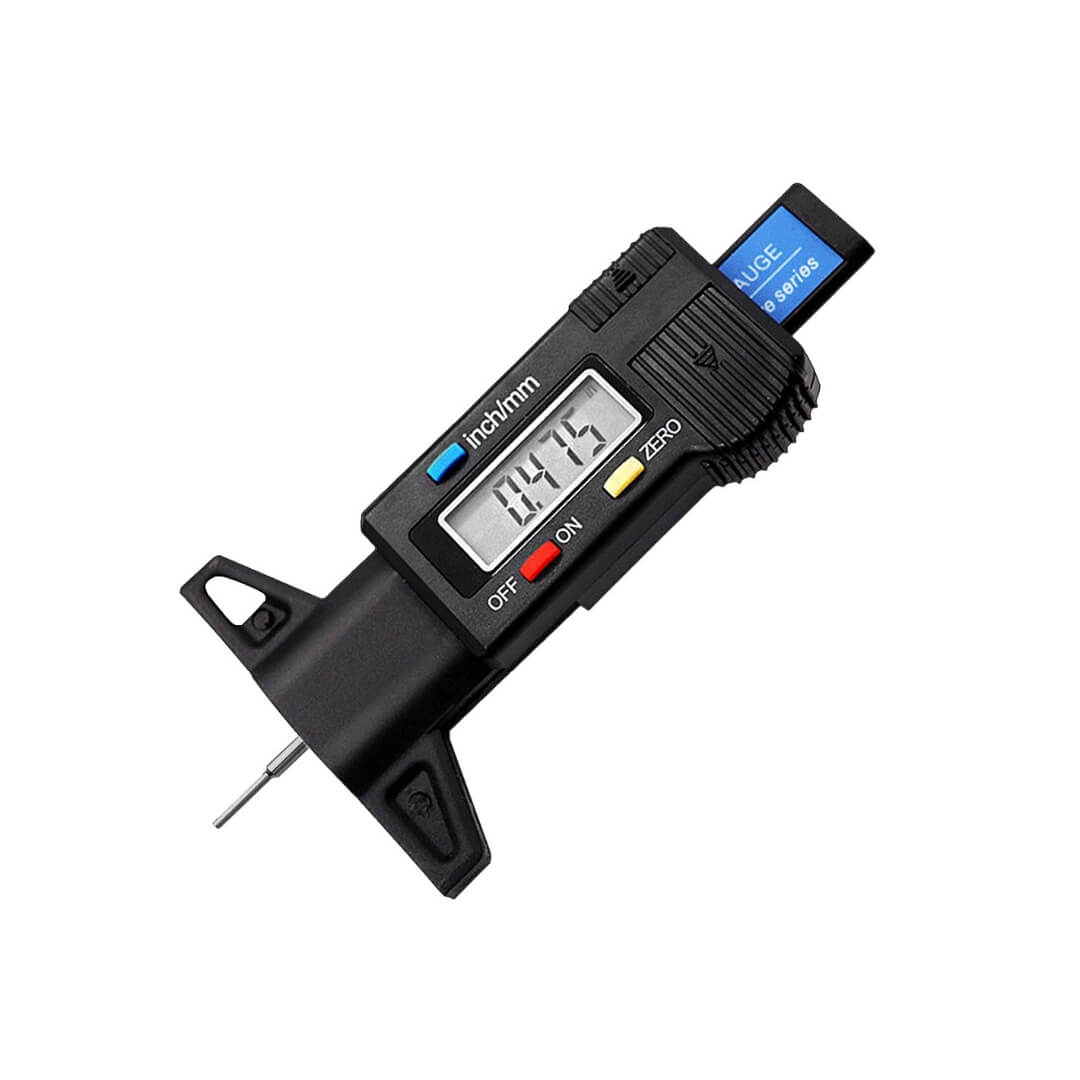

Duke Tools Digital Tyre Tread Depth Gauge
Measure tread depth from 0–25.4mm (0–1") with 0.01mm resolution and ±0.02mm accuracy.
Product Description

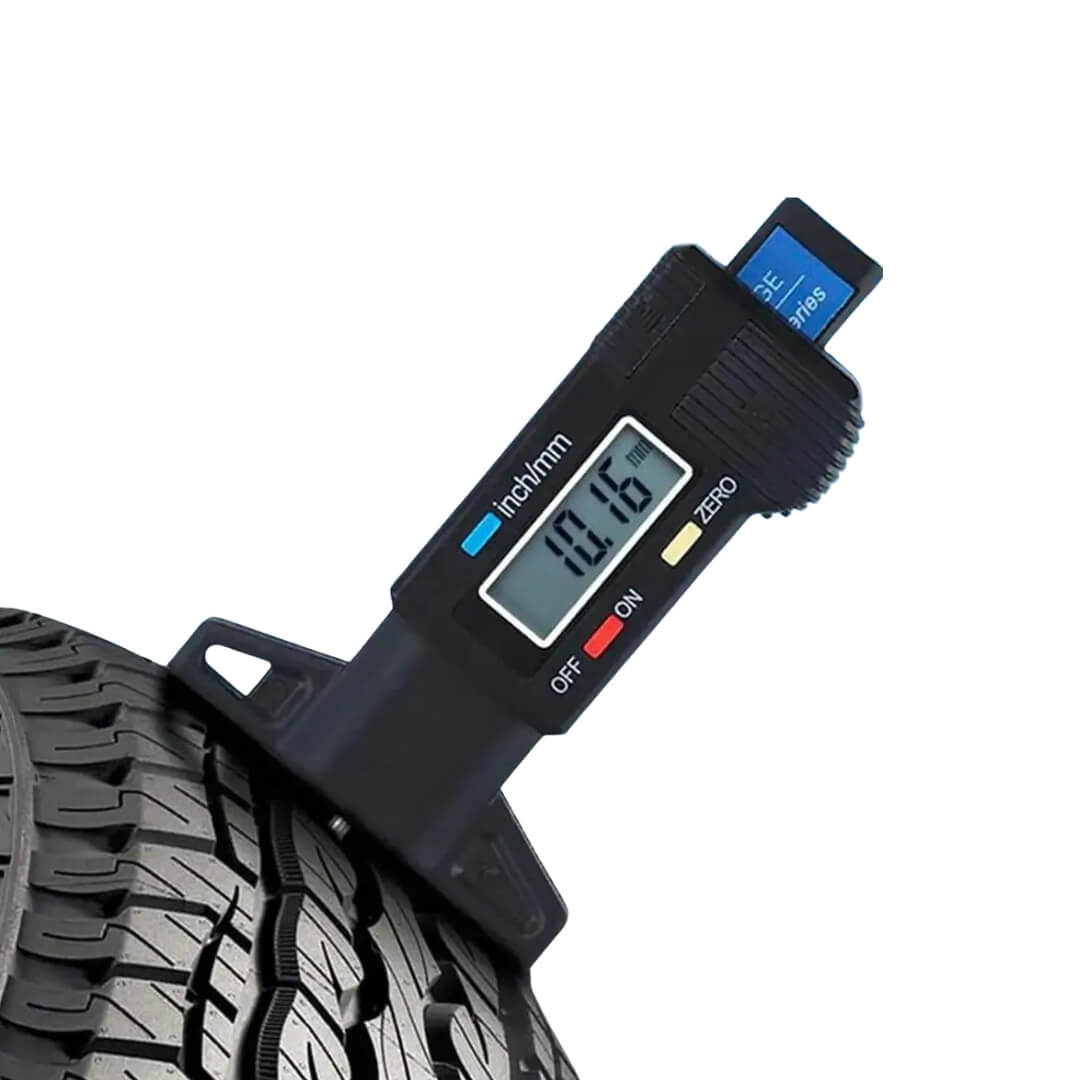

The Duke Tools Digital Tyre Tread Depth Gauge delivers precise tread wear assessments essential for regulatory compliance and vehicle safety, measuring depths from 0 to 25.4 mm (1 inch) with a resolution of 0.01 mm (0.0005 inch) and accuracy of ±0.02 mm to meet ISO 3611 standards for dimensional metrology in automotive applications.
Featuring a robust ABS plastic housing and a 50 mm stainless steel needle probe hardened to HRC 50-55 for resistance to abrasion from rubber compounds, this gauge supports dual-unit readout (metric/imperial) on a backlit LCD display, enabling low-light inspections in garage environments. Its zero-reset function at any position facilitates differential measurements across tread grooves, while low-battery indication and auto shut-off after 5 minutes conserve the LR44 1.5V battery life up to 1,000 hours of intermittent use.
Designed for technicians evaluating uneven wear patterns—such as outer-edge feathering from alignment issues—this tool identifies risks below the 1.5mm legal minimum, though a 3mm depth is recommended for safety, especially in wet conditions.
Key Features & Benefits
- High-Resolution LCD Display: 24 mm x 12 mm backlit screen with 0.01 mm increments provides clear visibility for readings in 5-10 lux conditions, supporting fractional inch modes for US-standard compliance.
- Dual Measurement Modes: Seamless switching between mm and inches (including 1/32″ fractions) via side button.
- Zero-Reset Functionality: Instant calibration against any reference surface, enabling accurate groove-to-groove comparisons and reducing measurement variability to <0.005 mm.
- Durable Construction: Impact-resistant ABS body (IP54-rated for dust/moisture) paired with a non-corrosive 316 stainless steel probe, extending service life beyond 10,000 cycles in oily workshop settings.
- Ergonomic Design: Compact 150 mm x 30 mm form factor with thumb-grip for one-handed operation, minimizing parallax errors during vertical tread profiling.

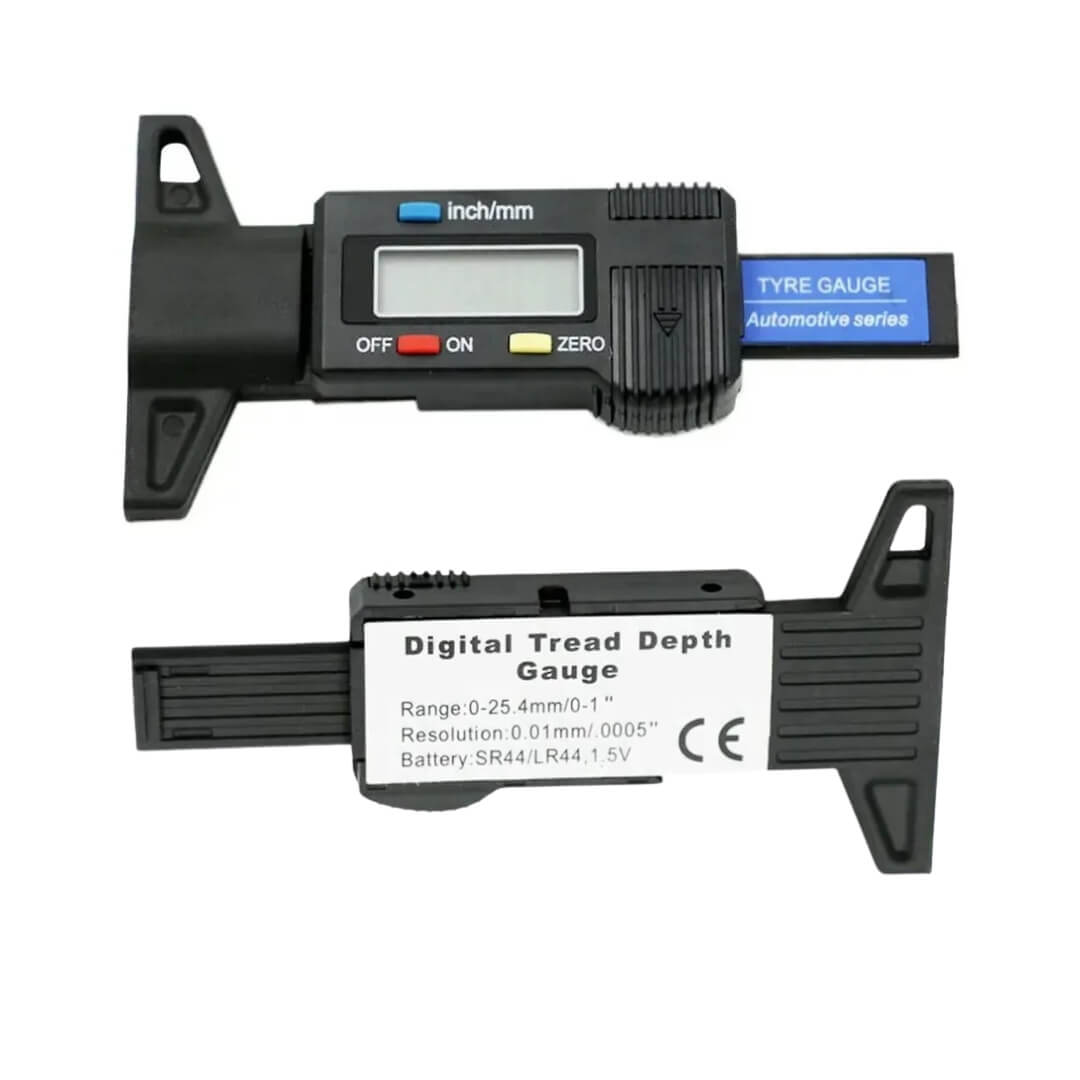

Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Brand | DUKE Tools Perth® |
| SKU | DP052542 |
| EAN / Barcode | 0792105195629 |
| Warranty Period | 12 Months |
| Warranty Type | Against defects in materials and workmanship |
| Warranty Terms | Refer full Warranty Terms |
| Product Condition | New |
| Product Length (mm) | 150mm |
| Product Width (mm) | 30mm |
| Product Height (mm) | 15mm |
| Product Weight | 45 grams |
| Battery | 1 x LR44 1.5V (Not Included) |
| Battery Life | Operational life >1,000 hours at 20°C |
| SPECIFICATION | DETAILS |
|---|---|
| Measuring Range | 0–25.4 mm (0–1″), covering full tread depth from new (8-12 mm) to wear limit (1.5 mm) |
| Resolution | 0.01 mm (0.0005″) for fine detection of progressive wear |
| Accuracy | ±0.02 mm across full scale, verified per ISO 3611 Class 1 tolerances |
| Display | Large 24 x 12 mm LCD with backlight and low-battery icon; auto shut-off after 5 minutes |
| Material | ABS plastic body (tensile strength 40 MPa) with 316 stainless steel needle (Ø1.5 mm, 50 mm length, HRC 50-55 hardness) |
| Colours | Black body with silver accents for high-visibility handling |
| Operating Conditions | 0–40°C, 20–80% RH; storage -10–60°C |
| Measurement | Due Metric & Imperial / SAE - Seamless switching between mm and inches (including 1/32" fractions) via side button |
Package Contents
1 × Duke Tools Digital Tyre Tread Depth Gauge
FAQs & Technical Guide
Get expert advice, in-depth answers, and practical tips to make the most of your Duke Tools Digital Tyre Tread Depth Gauge. This guide addresses common queries on calibration, usage, and maintenance to ensure reliable tread assessments for safety and compliance.
How do I calibrate the gauge for accurate tread measurements?
Press the zero button while the probe is on a flat reference surface (e.g., gauge block or glass plate) to reset the display to 0.00 mm; perform this before each session to account for thermal expansion (coefficient 12 x 10^-6/°C in ABS).
Recalibrate monthly or after drops >0.5 m.
What is the legal minimum tyre tread depth in Australia ?
In Australia, the legal minimum tyre tread depth is at least 1.5 mm of tread depth across the central 75% of the tread width in all principal grooves (excluding edges and wear indicators), though a 3mm depth is recommended for safety, especially in wet conditions.
Use the gauge to probe multiple points (e.g., 6 per tyre) at 20° intervals
Can this gauge measure in fractional inches for US vehicles?
Yes, toggle to SAE mode for 1/32″ increments (e.g., 2/32″ = 1.6 mm DOT minimum). The ±0.02 mm accuracy equates to ±0.0008″, exceeding NHTSA standards for consumer tools and enabling precise logging for fleet records.
How should I maintain the stainless steel probe to ensure longevity?
Wipe with isopropyl alcohol after use to remove rubber residue; avoid abrasives that could scratch the 316-grade surface (corrosion rate <0.1 mm/year in saline). Store probe retracted in the body to prevent bending under 5 N lateral force.
What probe insertion depth is recommended for uneven tread patterns?
Insert to 90% of groove depth (max 20 mm) with 1-2 N downward pressure, rotating 10° for average reading. For shoulder wear, angle at 45°; this mitigates 15-20% error from rubber elasticity (Young’s modulus 5-10 MPa).
Does the gauge work on motorcycle or truck tyres, and are there limitations?
Suitable for all pneumatic tyres up to 25 mm depth; for trucks, use on accessible grooves only, as probe length limits deep treads. Resolution holds for motorcycle profiles, but test in static conditions to avoid dynamic compression effects (up to 0.5 mm under load).
Recommended Uses
- Routine MOT preparation: Verifying tread uniformity across four tyres for UK annual inspections.
- Fleet maintenance: Logging depths quarterly for commercial vans to extend tyre life by 20%.
- DIY vehicle servicing: Checking wear after 5,000 km on passenger cars.
- Motorcycle safety checks: Measuring profile depths on sport bikes for track days.
- Agricultural equipment: Assessing tractor tyre treads in muddy conditions.
- Bicycle tyre evaluation: Adapting for fat-bike treads in off-road setups (scaled readings).
- Commercial truck inspections: DOT-compliant profiling for semi-trailers.
- Rental car returns: Quick audits for damage claims on hire vehicles.
- Emergency roadside assessments: Portable tool for breakdown services.
- Vintage car restoration: Documenting original tread specs during rebuilds.
- E-bike conversions: Ensuring hub-motor tyres meet urban safety minima.
- Construction site machinery: Gauging loader tyre wear in dusty environments.
- Marine trailer tyres: Saltwater-resistant checks for boat haulers.
- Rally car prep: Precision measurements for gravel-tyre compliance.
